With built-in metal spiral

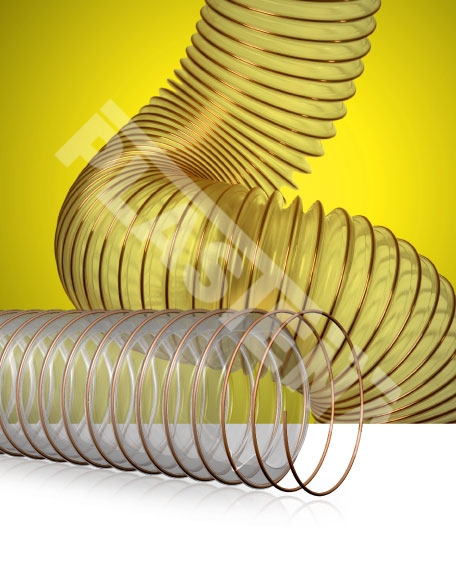

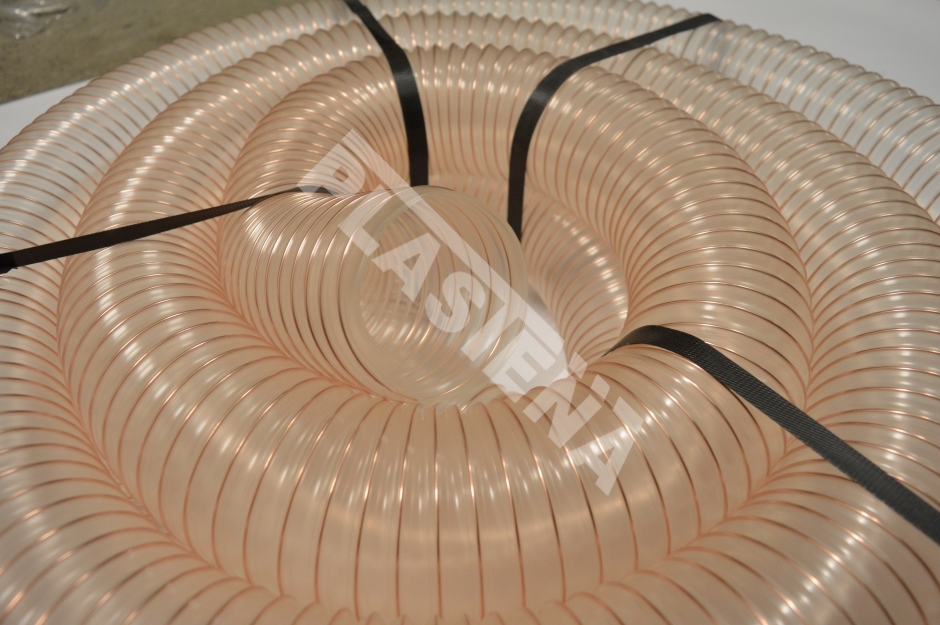

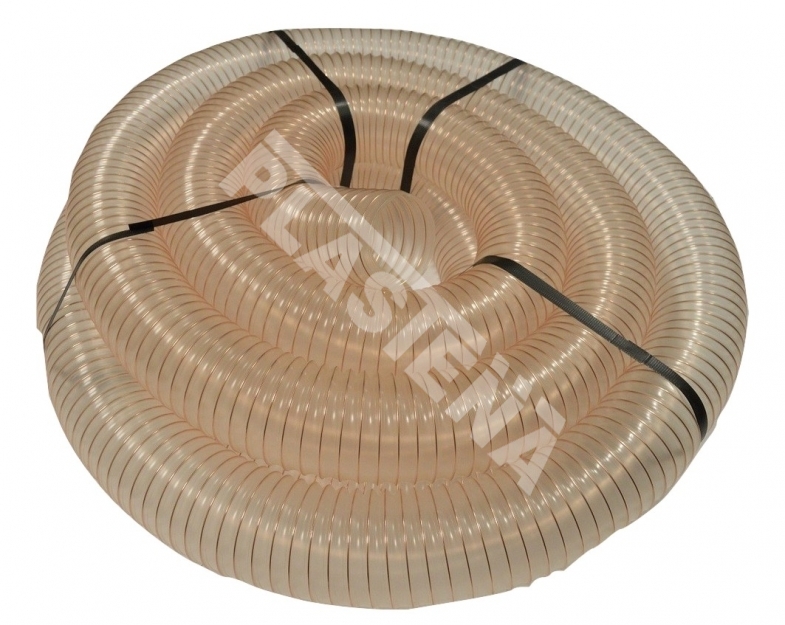

Hoses are produced from crystalline polyurethane with built-in metal spiral.
Characteristics:
- Metal spiral inside the pipe provides the hose with rigidity and flexibility, thus attaining maximum mechanical characteristics.
- Anti-static, abrasion resistant.
- Resistant to atmospheric action and various chemical products.
- Recommended temperature for use: from -30 °C to 85 ºC.
Scope of application:
Air suction: for abrasive and very reactive materials such as petroleum steam. Ventilation and suction of shavings.
Available diameters:
|
Diameter (internal) |
Length (m) | Vacuum (m H2O) |
| 40 | 10 | 0,40 |
| 50 | 10 | 0,40 |
| 60 | 10 | 0,40 |
| 75 | 10 | 0,40 |
| 80 | 10 | 0,40 |
| 90 | 10 | 0,40 |
| 100 | 10 | 0,32 |
| 110 | 10 | 0,30 |
| 120 | 10 | 0,25 |
| 125 | 10 | 0,25 |
| 140 | 10 | 0,20 |
| 150 | 10 | 0,20 |
| 160 | 10 | 0,18 |
| 180 | 10 | 0,12 |
| 200 | 10 | 0,10 |
| 250 | 10 | 0,10 |
| 300 | 10 | 0,08 |
| 350 | 10 | 0,08 |
| 400 | 10 | 0,06 |
