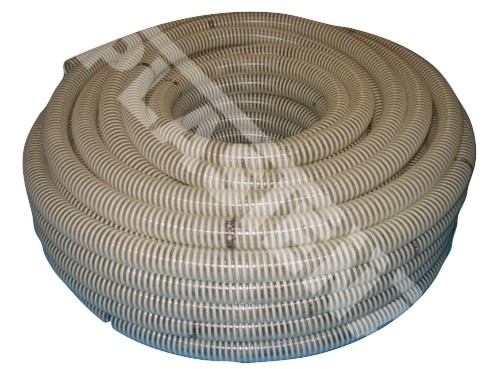

PVC hoses with PVC cord
Hoses are produced during extrusion from vinyl compounds by following the standard of UNE-EN ISO 3994.
Characteristics:

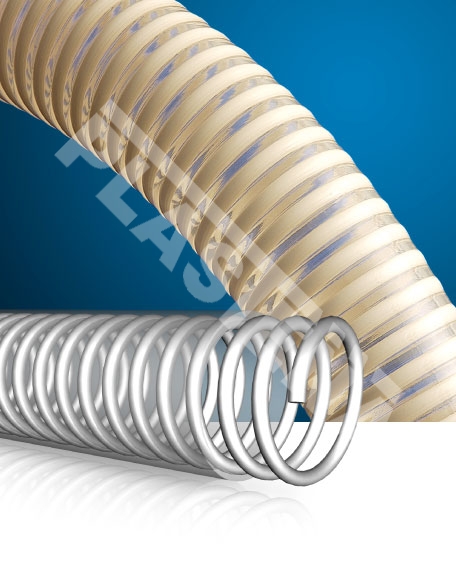

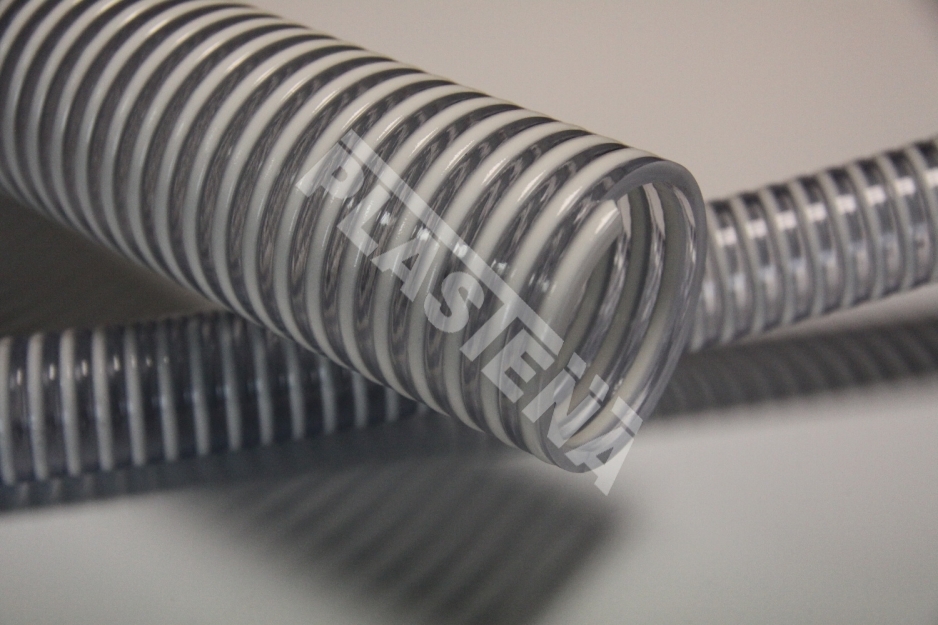

- Flexible hose is produced from transparent PVC with solid PVC spiral that protects the hose against sudden change in: temperature, tension, and etc.
- Smooth internal walls of the tube helps to avoid occurrence of sediments and improves hose sterilisation.
- Resistant to atmospheric action and to most of chemicals.
- Operating temperature: from -10 oC to +60 oC.
Scope of application:
Transportation of drinking water, light alcohol containing (up to 28 % vol.) and low-fat liquids. They suit for sanitary installations. They also suit not only for suction but also for transfer of pressure, e. g., in irrigation systems.
Available diameters:
| Diameter (internal x external, mm) | Length (m) | Operating pressure (Bar) |
| 19x26 | 50 | 8 |
| 20x27 | 50 | 8 |
| 25x32 | 50 | 8 |
| 32x39 | 50 | 7 |
| 38x46 | 50 | 6 |
| 45x53 | 50 | 6 |
| 50x58 | 50 | 5 |
| 60x68 | 50 | 5 |
| 65x74 | 50 | 5 |
| 75x84 | 50 | 4 |
| 90x100 | 30 | 4 |
| 100x111 | 30 | 4 |
| 125x138 | 30 | 3 |
| 150x164 | 20 | 3 |
| 200x217 | 20 | 2 |
