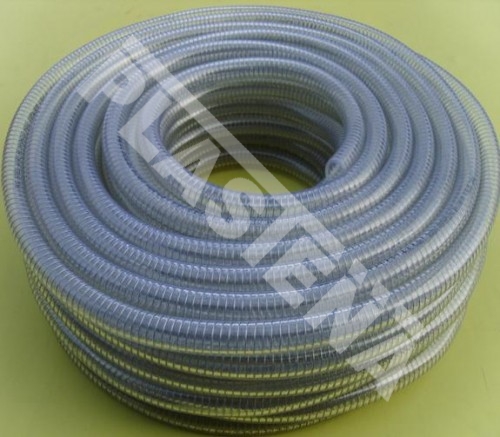

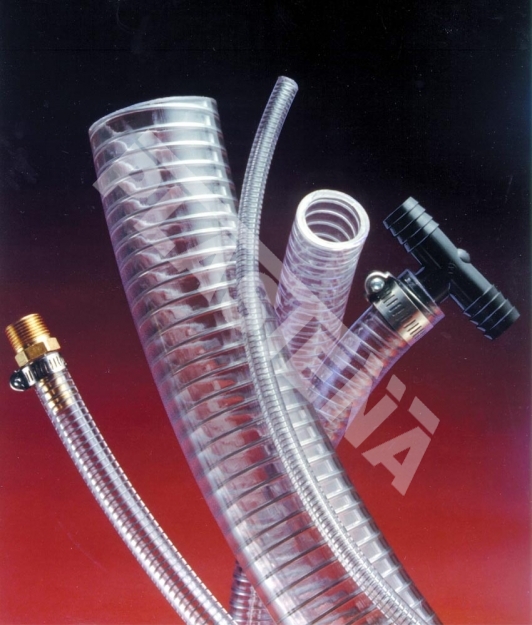

Transparent PVC hoses with galvanised steel cord
Flexible, non-toxic PVC suction and discharge hose with galvanised steel spiral.
Characteristics:
- Non-toxic, suitable for food.
- Pipe with rigid galvanised steel spiral inside.
- Walls inside the hose are smooth, thus avoiding accumulation of sedimentation and providing improved pipe sterilisation.
- Resistant to pressure and suction.
- Resistant to atmospheric action and various chemical products.
- Recommended temperature for use: from -10 oC to 60 oC.
Scope of application:
Pneumatic, hydraulic installations, vacuum cleaners, irrigation systems, treatment plants (sludge, dirt), treatment piping. Low-fat liquids, alcoholic liquids (up to 25 % vol.), fine granules. It also suits for drinking water and other liquid foodstuffs.
Available diameters:
| Diameter (internal x external, mm) | Length (m) | Operating pressure (Bar) |
| 16x23 | 100 | 12 |
| 19x26 | 50 | 10 |
| 25x33 | 50 | 9 |
| 32x40 | 40 | 9 |
| 38x47 | 40 | 9 |
| 50x61 | 30 | 7 |
| 65x78 | 30 | 5 |
| 75x91 | 20 | 5 |
| 102x116 | 10 | 3 |
| 105x119 | 10 | 3 |
| 125x141 | 10 | 3 |
| 152x172 | 10 | 2,5 |
