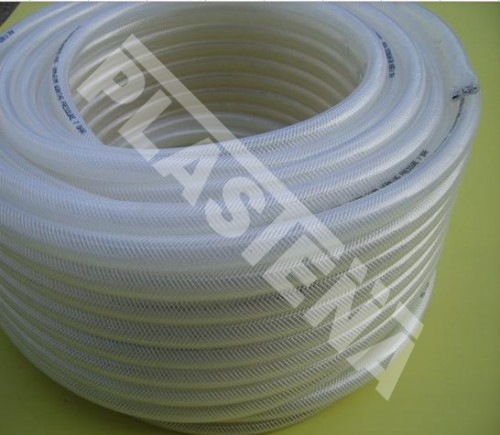

Transparent PVC hoses with textile cord
Hoses are produced during extrusion from vinyl compounds and reinforced by using a mesh of polyester sutures.
Characteristics:
- Non-toxic, suitable for transportation of liquid foodstuffs, except for fats.

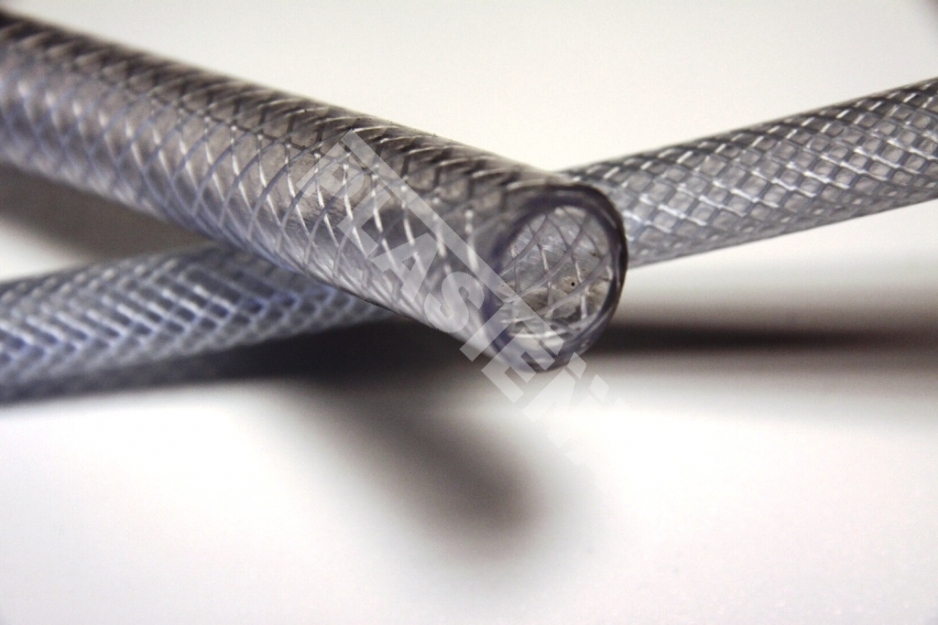

- Internal polyester suture mesh strengthens the hose so that it withholds pressure of up to 15 bars and enhances resistance to breaks upon tension.
- Very flexible and simple to use.
- Transparent for transported materials to be visible.
- Resistant to atmospheric action and chemical products.
- Temperature threshold varies from -10 oC to +60 oC.
Scope of application:
Transfer of liquid food or industrial products, air, gas, compressed air, and etc. Also suits for agricultural applications.
Available diameters:
| Diameter (internal x external, mm) | Length (m) | Operating pressure (Bar) |
| 6x12 | 100 | 15 |
| 8x13 | 100 | 15 |
| 10x15 | 100 | 15 |
| 12x17 | 100 | 15 |
| 13x18 | 100 | 15 |
| 15x23 | 100 | 15 |
| 16x21 | 100 | 15 |
| 19x25 | 100 | 10 |
| 25x33 | 50 | 10 |
| 30x38 | 50 | 7 |
| 32x40 | 50 | 7 |
| 38x48 | 50 | 6 |
| 50x60 | 50 | 5 |
