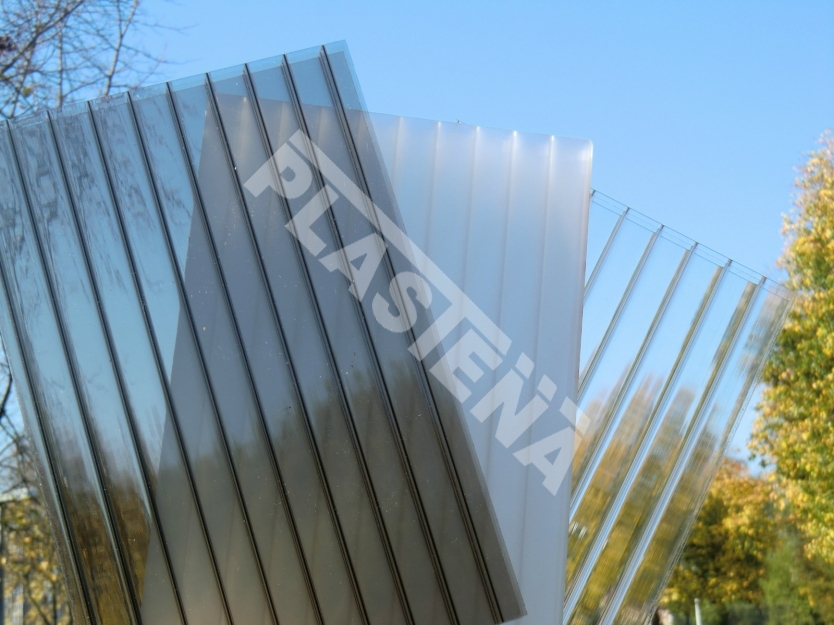

Ducted polycarbonate (PC)
Polycarbonate is a transparent polymer characterised by especially high shock resistance even at low temperatures, mechanical strength, good dielectric properties etc.

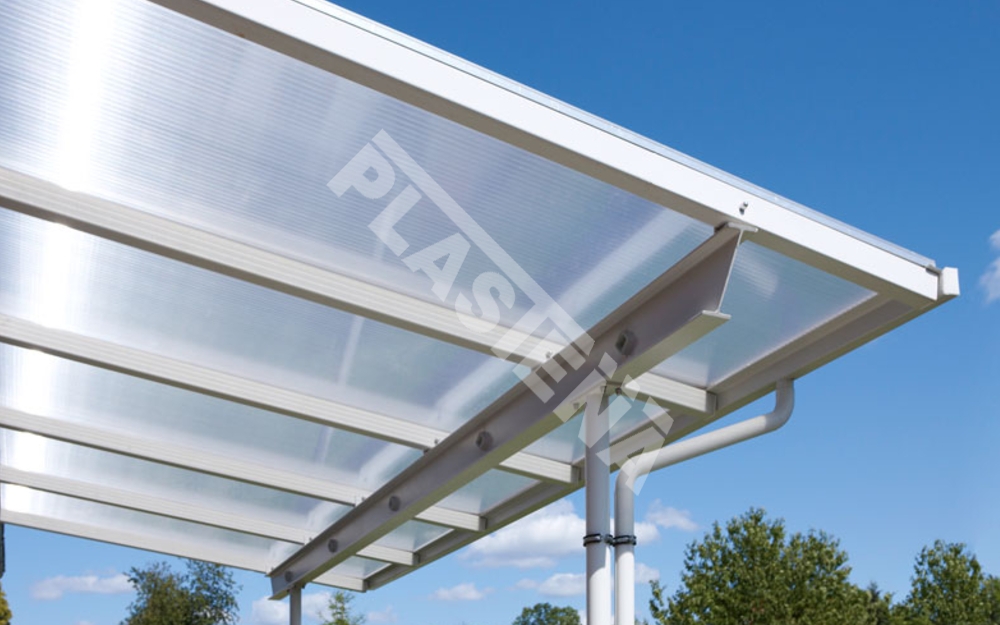

Due to its transparency, low weight, shock resistance and especially high thermal conductivity coefficient, ducted polycarbonate is widely used in constructions of roofs and walls.

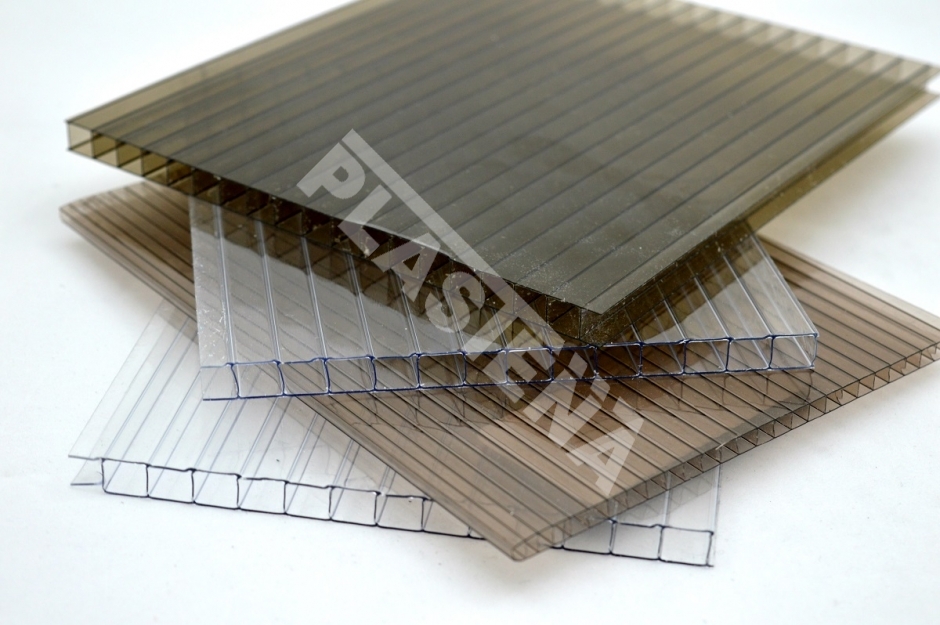

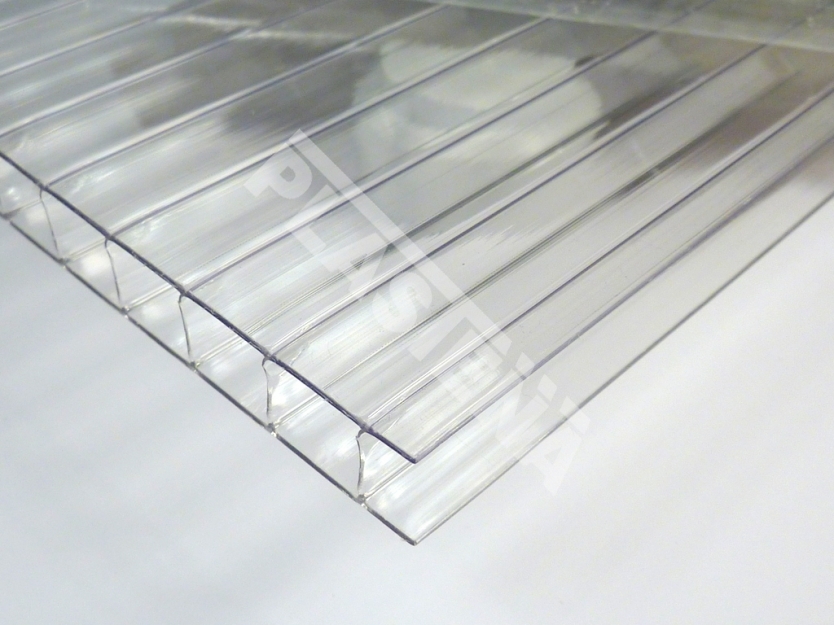

Properties of ducted polycarbonate sheets:
- Good protection from UV radiance and atmospheric impact;
- Multilayer structure ensures great thermal insulation properties;
- Hard, firm and light;
- Easy mechanical treatment;
- Good optical transparency;
- Do not flame and burn without emitting harmful substances;
- Resistance to high temperature (+120oC) and chemical impact;
- High shock resistance (hardly perforated);
- 10 years warranty for colour stability and resistance to atmospheric impact.
Intended use:
|
|
Dimensions:
| Sheet thickness, mm | Structure |
Dimensions, mm (width x length) |
Relative mass, kg/m2 | Permeability of light, % | |
| 4 | 2R |
2100x6000 2100x7000 |
0.75-0.85 | 82 | 40 |
| 6 | 2R/3W |
2100x6000 2100x7000 |
1.2-1.3 | 75 | 40 |
| 8 | 2R/3W |
2100x6000 2100x7000 |
1.5 | 75 | 40 |
| 10 | 2R/3W/4W |
2100x6000 2100x7000 |
1.7-1.75 | 75 | 40 |
| 16 | HC/5X |
2100x6000 2100x7000 |
2.5 | 65 | 25 |
| 20 | HC/5X |
2100x6000 2100x7000 |
3.1 | 63 | 25 |
Auxiliary profiles for mounting of polycarbonate sheets:
|
Name |
Draft | Dimensions, mm | Description |
|
U profile (polycarbonate) |
 |
4, 6, 8, 10, 16 x 2100 | For finishing polycarbonate sheet ducts |
| H profile (polycarbonate) |  |
4, 6, 8, 10, 16 x 6000 |
For connecting polycarbonate sheets |
| W profile (polycarbonate) |  |
4, 6, 8, 10, 16 x 6000 |
For connecting polycarbonate sheets in angle |
| F profile (aluminium) |  |
6, 8, 10, 16 x 6000 | For finishing polycarbonate sheet ducts |
| Breathable tape |  |
38x50000 | For finishing polycarbonate sheet ducts |

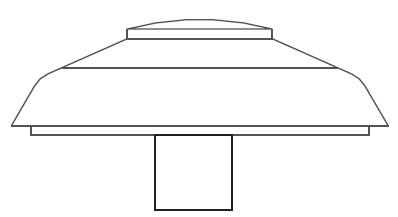

| Fixing element |  |
6, 10, 16 | For fixing polycarbonate sheets to spars |
