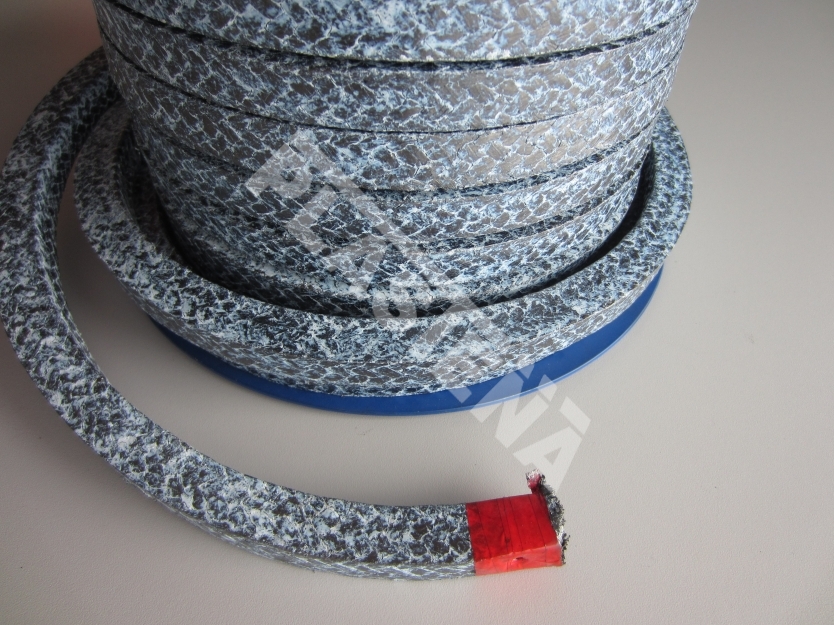

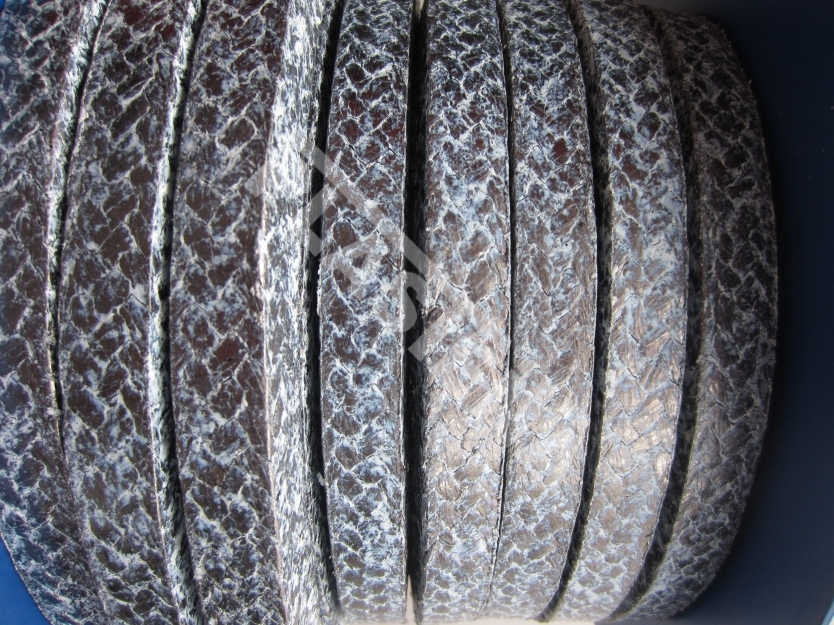

Material: thermally extended graphite impregnated with PTFE.

Purpose: used for sealing of pistons, pressure vessels in chemical and oil industries.

Maximum pressure:

• centrifugal pump: 20 bar
• plunger pump: 100 bar
• reinforcement: 300 bar

Min temperature: -200 °C

Max temperature: 280°C

Speed:

• centrifugal pump: 20 m/s
• plunger pump: 2 m/s

pH: 0 - 14

Square section: 4 - 30 mm
