Polyetherimide (PEI)
Polyetherimide – it is engineering plastic featuring mechanical strength, the stability of dimensions and well-interbalanced chemical and thermal characteristics (may be used up to +170oC). Chemical name – PEI.
This plastic is resistant to deformations (especially to the action of rotational force), thus it is sufficiently cost-beneficial to use this plastic instead of small mechanically produced steel parts. Polyetherimide may be produced with glass fibre additive (up to 30 %), as it provides this plastic with higher hardness, rigidity, mechanical and thermal strength, and stability of dimensions.
- Fire resistant (non-flammable);
- Flueless;
- Features mechanical strength, rigidity, and hardness, even at various temperatures;
- Easy mechanical workability;
- May be formed by heat treatment;
- Sufficiently good adhesive characteristics;
- May be welded;
- Low thermal expansion coefficient;
- Ensure stability of dimensions, even at high temperatures;
- Good electro-insulation and dielectric characteristics;
- Resistant to gamma radiation;
- Resistant to multiple sterilizations;
- Particularly high resistance to water and steam, mineral oils, petrol, and alcohol;
- Chemically non-resistant to aromatic solvents, ketones, certain hydrocarbons, other solvents, e. g., methylene chloride;
- Colour: PEI – yellowish (amber), PEI with glass fibre additive – grey (black).
- Density – 1.27 g/cm3;
- Operating temperature: from -50 oC to +170 oC;
- Short-term operating temperature +210 oC (PPS);
- Reaction to fire class: V0 (UL 94).
PEI plastic is used, if fire-resistance and mechanical rigidity are required.
The industry of electrics and electronics: for high voltage housings, insulators, microwave oven parts, plug-in adapters, terminal, and fuses.
Medicinal industry: for adapters, instrument handles, probes.
Aviation: for finishing of passenger saloons, panels.
Production of wheeled motor vehicles: components of motor vehicle bonnets, jet engines.
| Thickness (mm) | Width (mm) | Length (mm) | Diameter, Ø (mm) | |

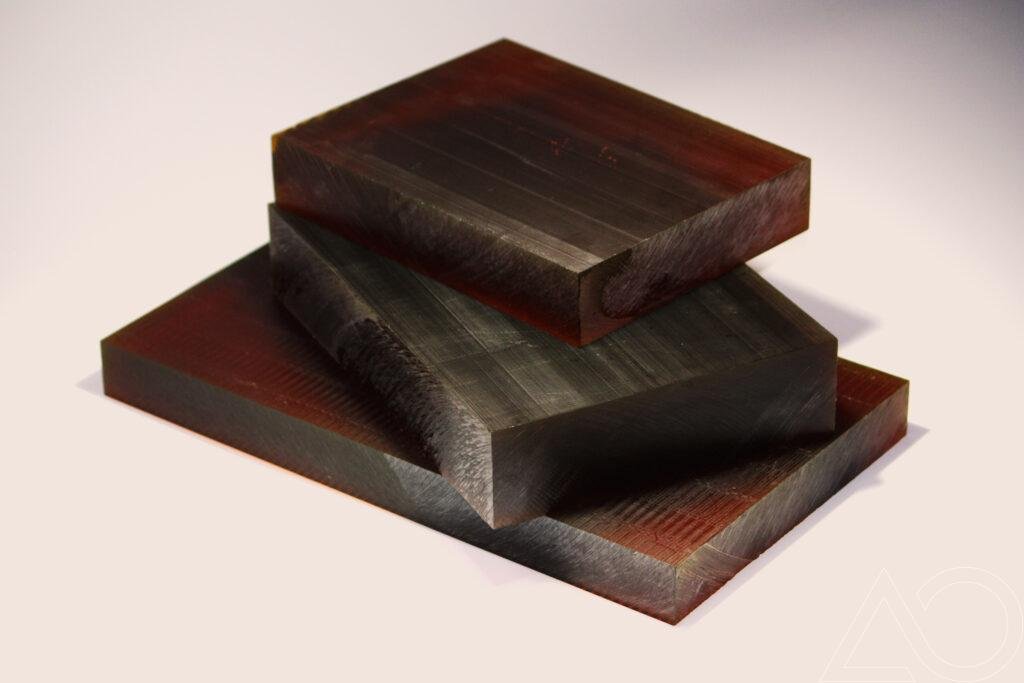

| Sheets | 10-60 | 620 | 3000 | – |

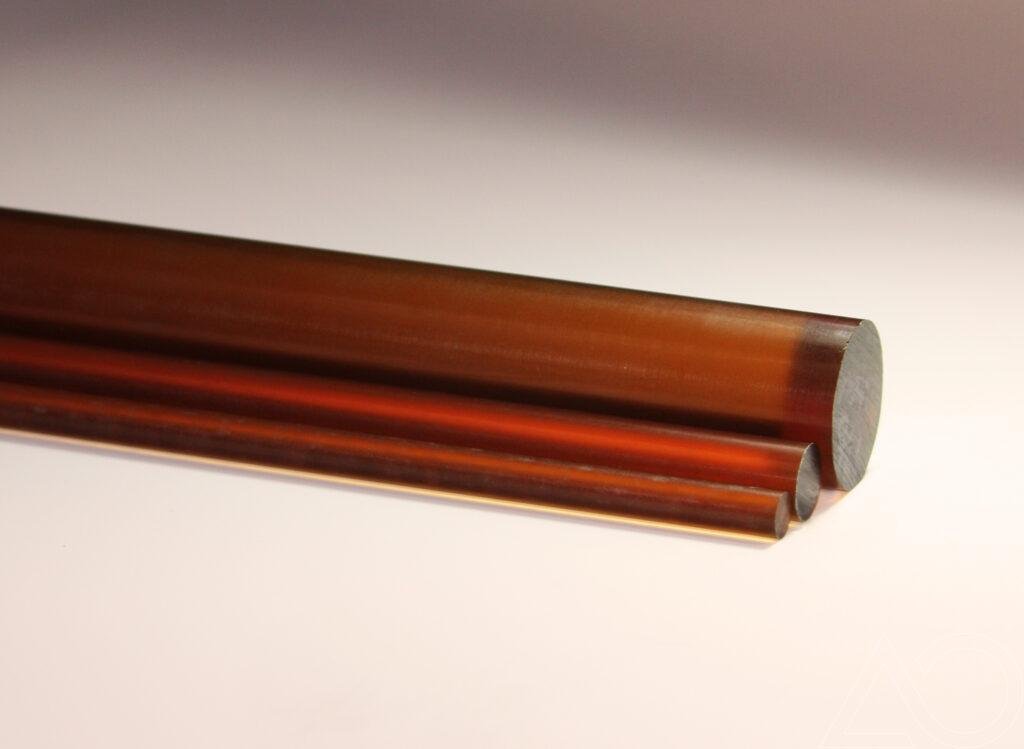

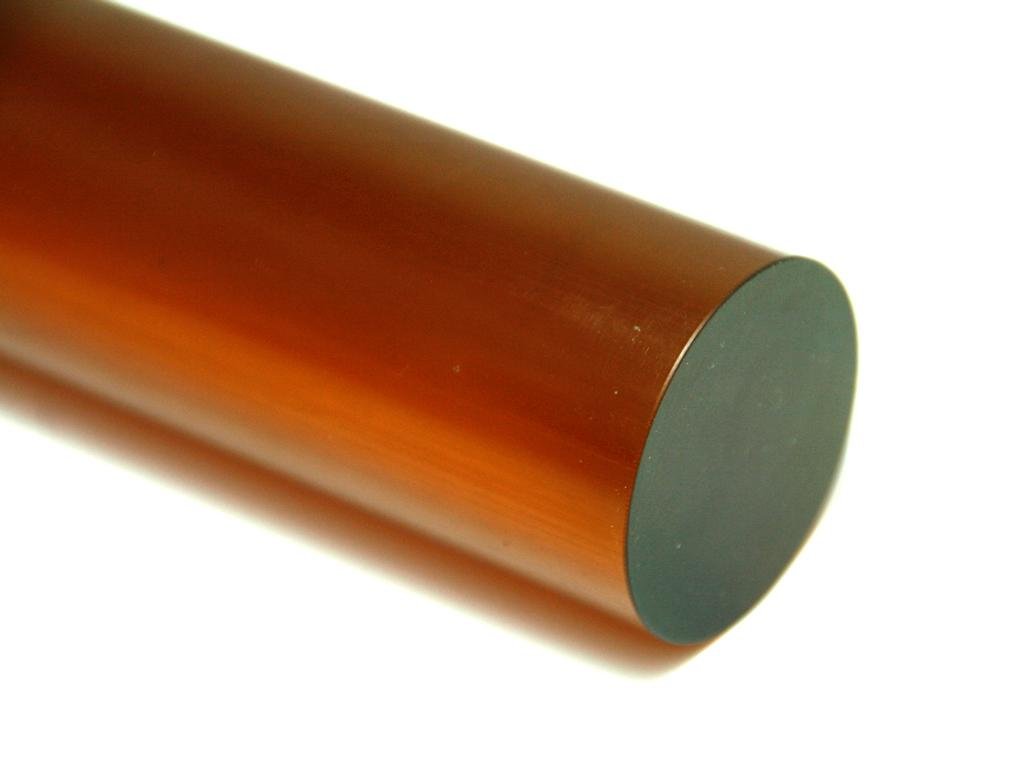

| Rods | – | – | 1,220; 2,440 | 20-100 |
*PEI plastic is not warehoused, it is delivered only on special orders.
