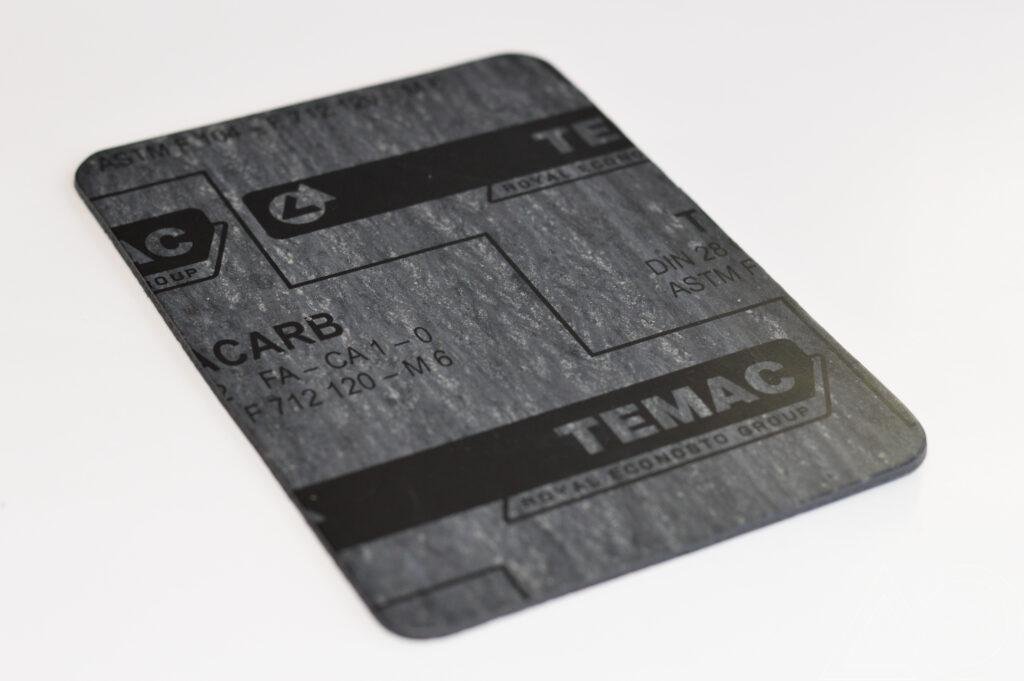

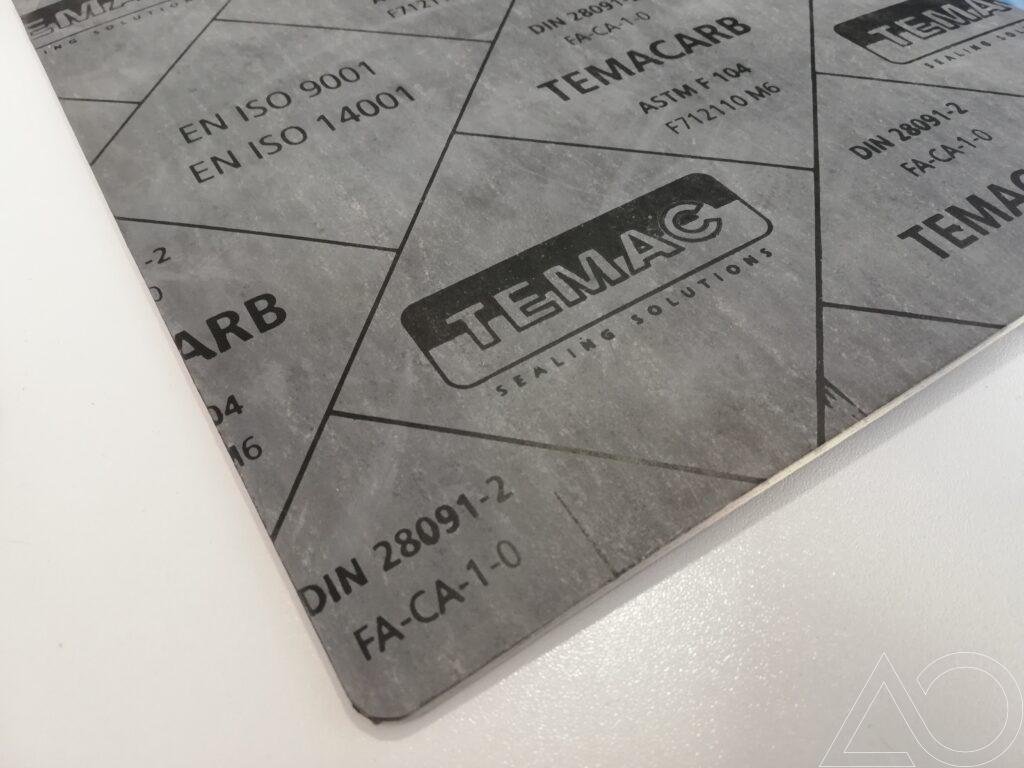

Non-asbestos jointing sheets – TEMACARB
TEMACARB jointing sheets are made of high quality carbon fibre reinforced with high quality NBR rubber.
Colour: black
Marking according to:
DIN 28 091-2: FA-CA-1-0 (ST)
ASTM F 104: F 712 110 M6 (M7)
Max temperature: 450 °C
Operating temperature: 250 °C
Max pressure: 100 bar
Certificates: GOST
All sheets are made with single-sided anti-static surface.
These versatile synthetic fibre jointing thermal sheets (paronite, paranite, gasket sheets) are especially suitable for use in alkaline media, they are creep resistant and are also suitable for sealing against steam, lubricants, different types of fuel (gasoline, diesel), oils, gas, alkali, acids, cooling liquids.
Standard dimensions of sheets: 1.5 x 1.5 m; 1.5 x 1.0 mm
Standard width: 0.4; 0.5; 0.8; 1.0; 1.5; 2.0; 3.0; 4.0; 5.0 mm
Thickness deviation: ± 5 %
