Seals

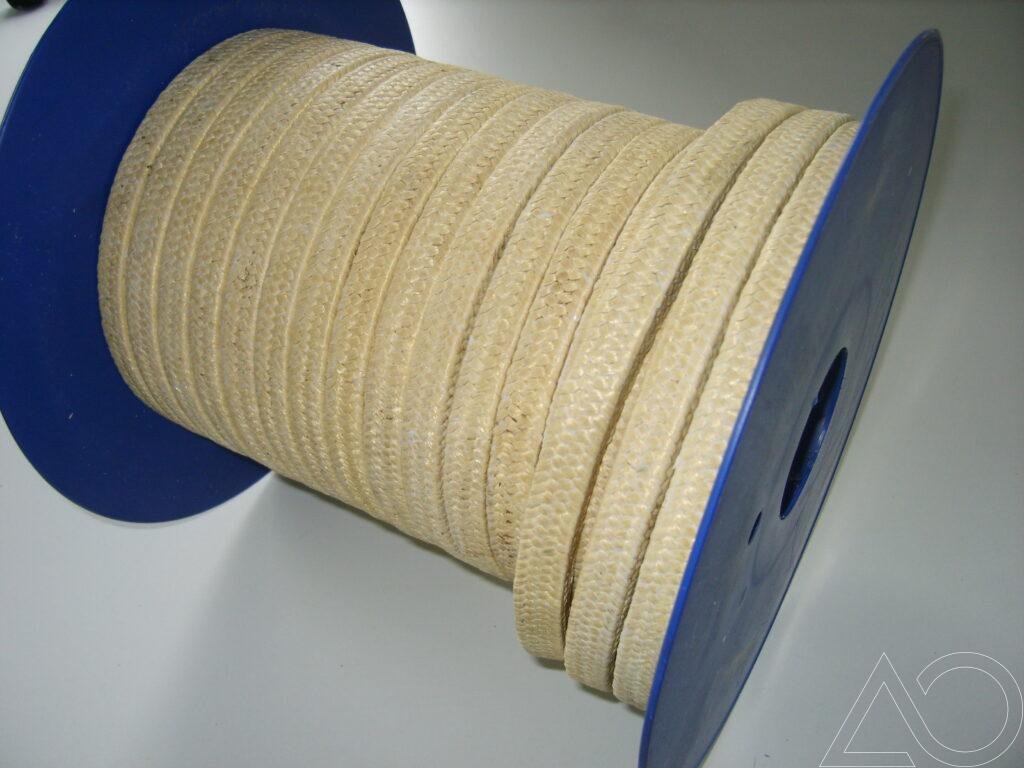

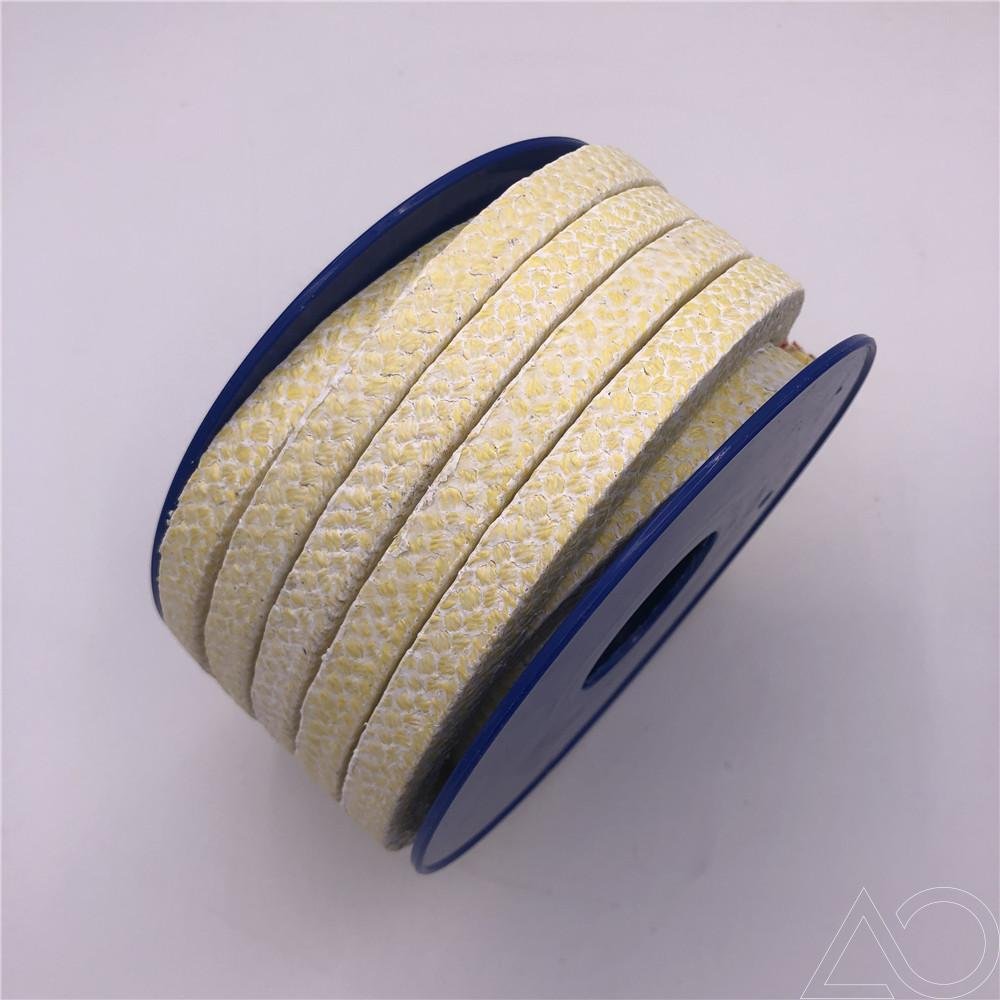

Packing 3300

Material: Aramid fiber packing impregnated with PTFE emulsion and silicone oil.

Purpose: Ensures resistance to mechanical and chemical impacts and at the same time reduces effect of friction. Intended use: for insulation against inert gases, oils, abrasive substances, solvents.

Contact

Maximum pressure:

centrifugal pump: 25 bar
plunger pump: 100 bar
reinforcement: 100 bar

Min temperature: -100 °C

Max temperature: +280 °C

Speed:

centrifugal pump: 20 m/s
plunger pump: 1.5 m/s

pH: 2 – 12

Used for pumps in all types of industry such as chemical, petrochemical, pharmaceutical, food and sugar industries, pulp and paper mills, power stations etc. Packing able to with stand granular and abrasive applicatons. Recommended for serve on super heated steam, solvents, liquefied gases, sugar syrups and other abrasive fluids.

Square section: 10 – 20 mm
